Balancing Dampers

Alleviate drafts and cold/warm spots in your building. Balancing dampers maintain even air pressure across your duct. For smooth and efficient airflow.

Products 7

Products

354

6" to 8" Deep Double Deck Multi-Zone Damper

Arrow - 354

354

  • Maximum Velocity (FPM): 1000 fpm
  • Max Static Pressure: 2 .in w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Maximum Velocity (FPM): 1000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

A11

2" Deep Single Blade Aluminum Damper

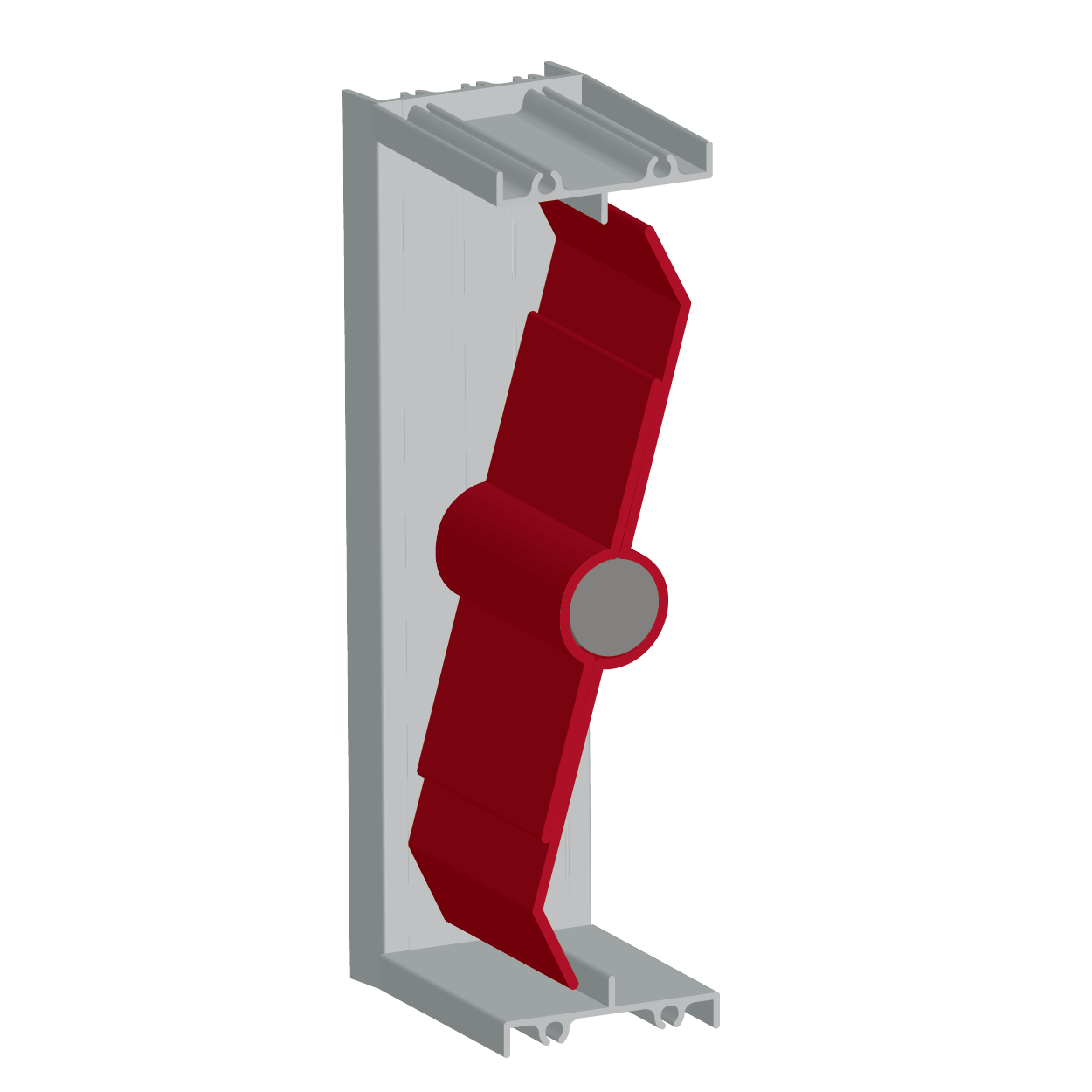

Arrow - SB28

A11

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Extruded Aluminum 6063 Alloy
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

D1770

4" Deep Single Thickness Blade Steel Control Damper

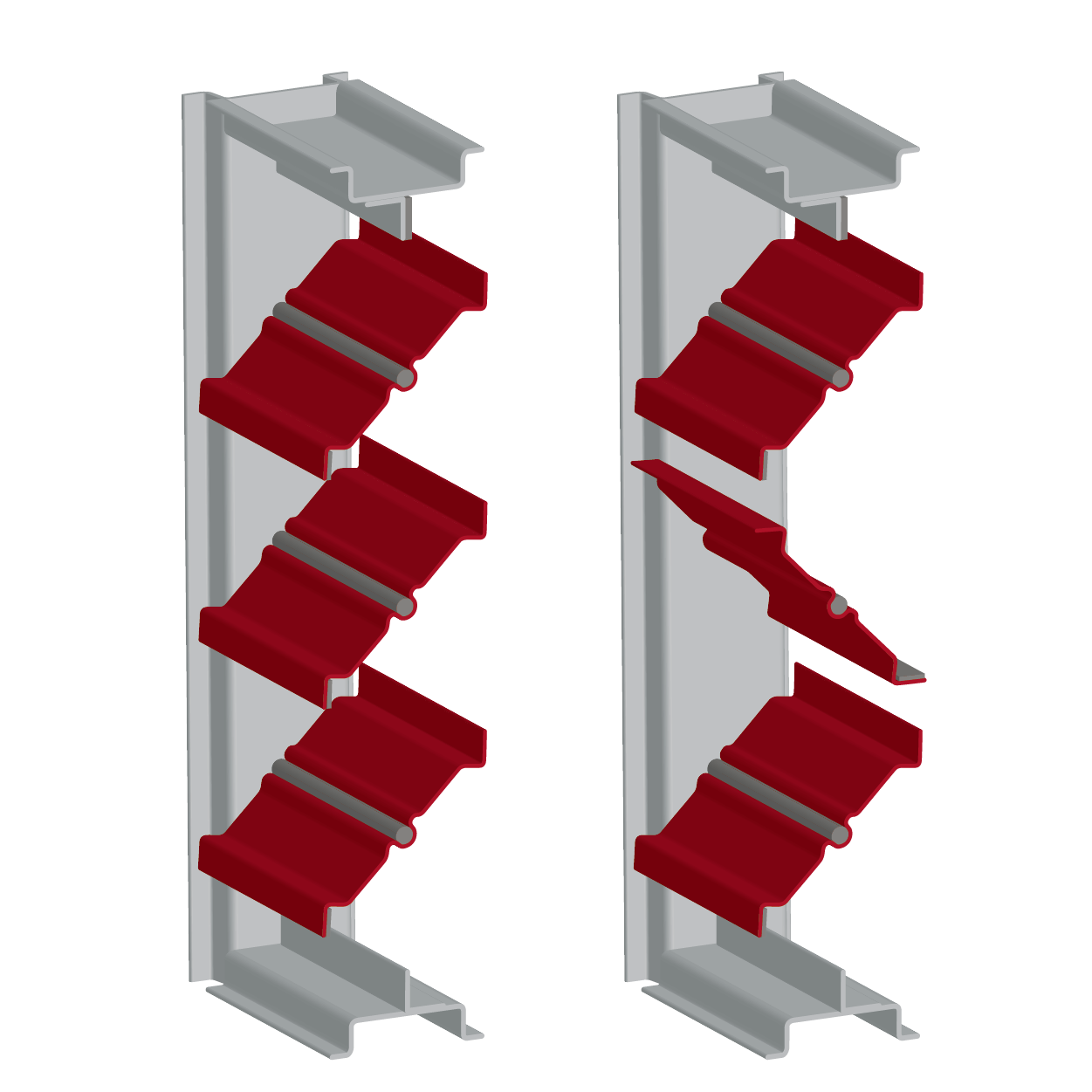

Arrow - 1770

D1770

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel / Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info

GB1

5.5" Deep Single Thickness Blade Balancing Damper

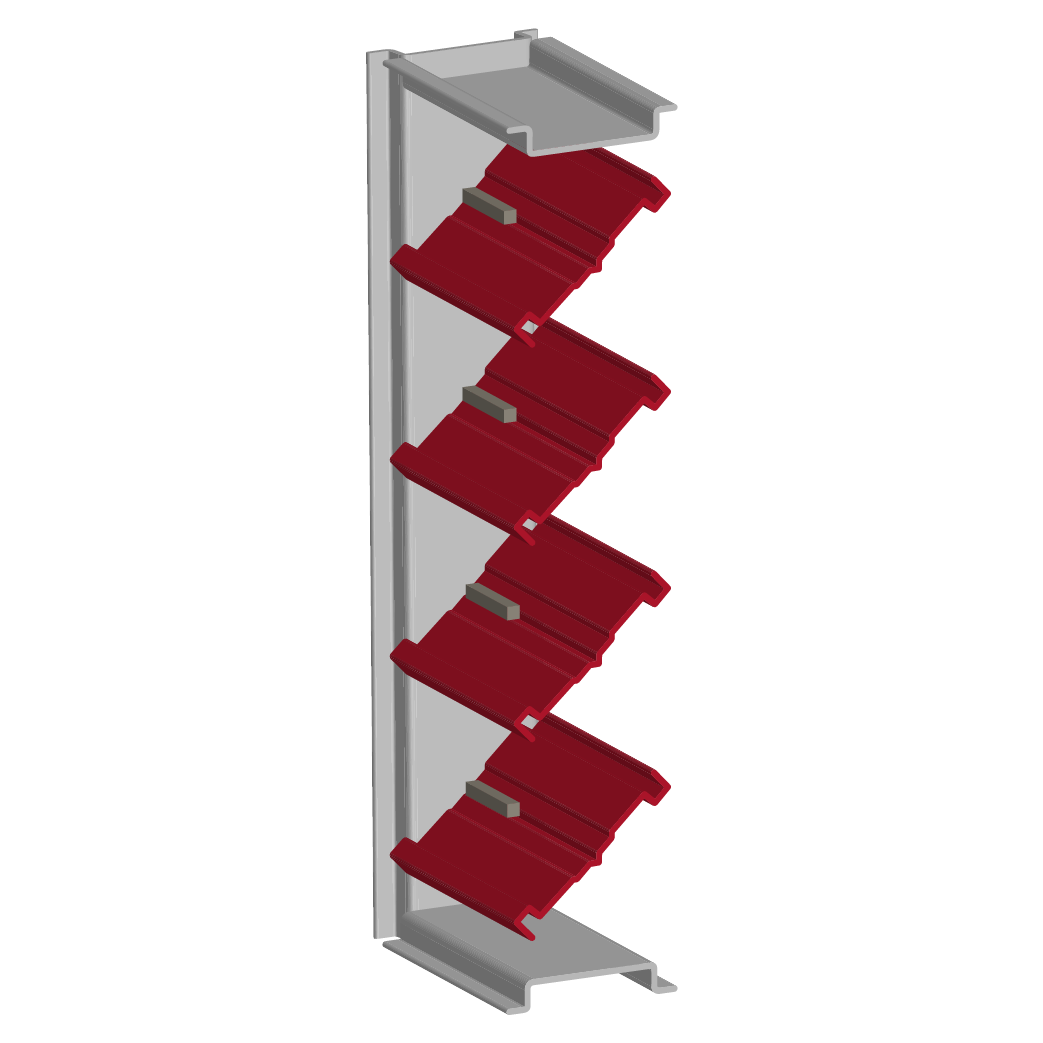

Arrow - 1660_slice

GB1

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

GB2

5.5" Deep Single Thickness Blade Balancing Damper

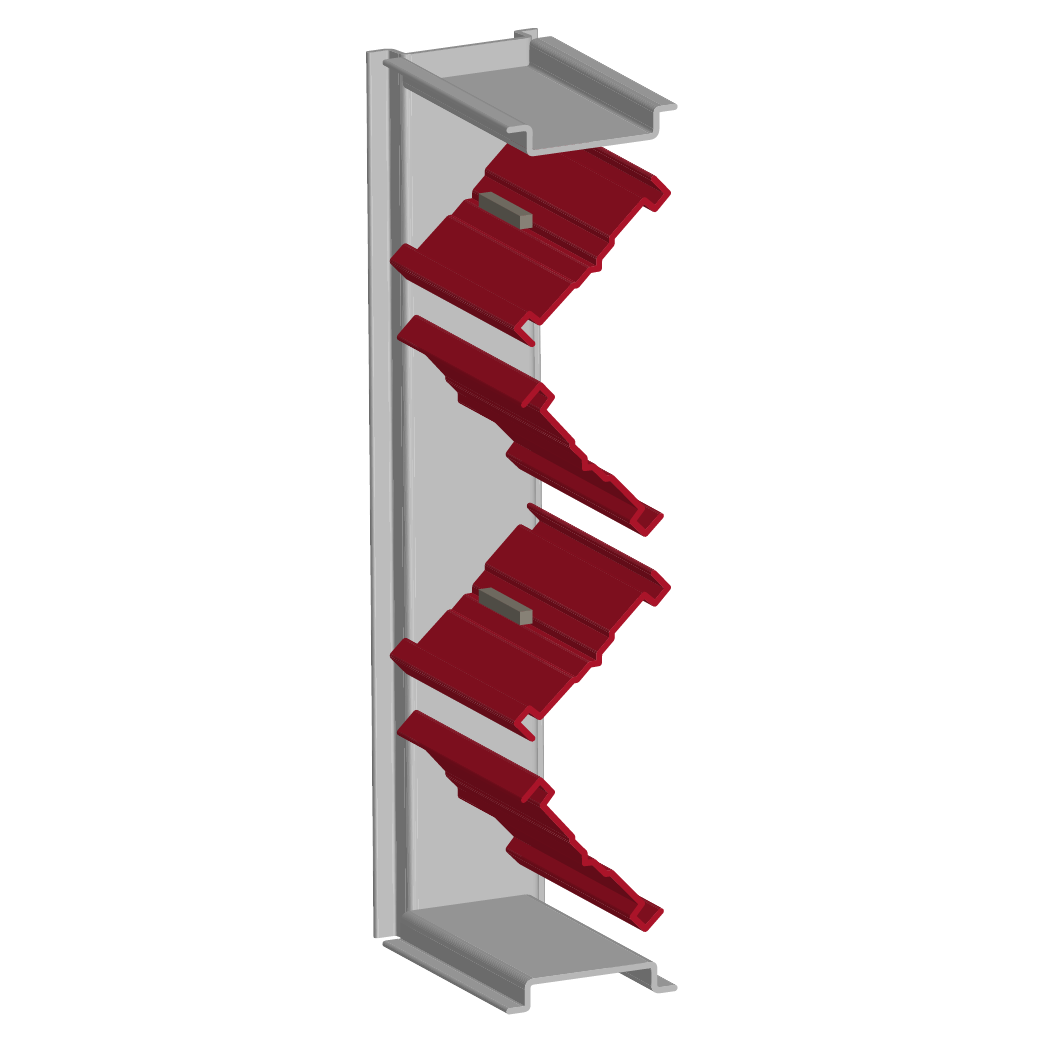

Arrow - 1661_slice

GB2

  • Maximum Velocity (FPM): 2000 fpm
  • Max Static Pressure: 4 .in w.g. @ 1000 fpm
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Material Options: 304 Stainless Steel, or Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Opposed
  • Frame Shape: Rectangular
  • Pressure Drop: .04 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 2000 fpm (FPM)
  • Temperature Rating (°F): 200 °F
More Info

L111

4" Deep Single Blade Volume Control Balancing Damper

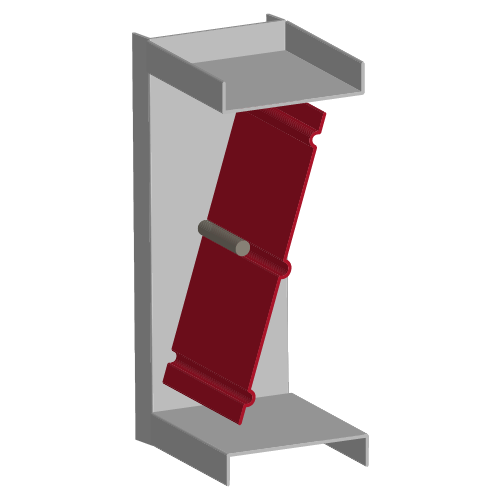

Arrow - 150VCD_slice

L111

  • Maximum Velocity (FPM): 1500 fpm
  • Max Static Pressure: 1 .in w.g. @ 1000 fpm
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Single
  • Frame Shape: Rectangular
  • Pressure Drop: .037 in. w.g. @ 1000 fpm
  • Maximum Velocity (FPM): 1500 fpm (FPM)
  • Temperature Rating (°F): 250 °F
More Info

356

10" Deep Triple Deck Multi-Zone Damper

Arrow - 35610

356

  • Maximum Velocity (FPM): 1000 fpm
  • Max Static Pressure: 2 .in w.g. @ 1000 fpm
  • Material Options: Galvanized Steel
  • Blade Type: Single Thickness Blade
  • Blade Action: Parallel
  • Maximum Velocity (FPM): 1000 fpm (FPM)
  • Temperature Rating (°F): -40 °F to 180 °F
More Info
