Non-UL Dampers

Air control, pressure balancing, one-way flow. Our Non-UL dampers keep air moving through your HVAC system.

Products

A28-A29

5" Deep Ultra Low Leak Airfoil Control Damper

Featured

A28, A29

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Insulation: Uninsulated
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

L517 / L518

5.5" Deep Airfoil Blade Steel Control Damper

Featured

L517, L518

Maximum Velocity (FPM): 5000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 5000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

225-B

2" Deep Light Duty Aluminum Pressure Relief Backdraft Damper

225B

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .14 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

354

6" to 8" Deep Double Deck Multi-Zone Damper

354

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

356-12

12" Deep Triple Deck Multi-Zone Galvanized Steel Damper

356

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -20 °F to 140 °F

580-BD

10" Deep Round Industrial Backdraft Damper

580BD

Maximum Velocity (FPM): 6000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 6000 fpm (FPM)
Temperature Rating (°F): 200 °F

A11

2" Deep Single Blade Aluminum Damper

A11

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

AD1

5" Deep Parallel Single Thickness Blade Pin-Lock Control Damper

AD1

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)

AD2

5" Deep Opposed Single Thickness Blade Pin-Lock Control Damper

AD2

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 2.5 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)

AD5

5" Deep Aluminum Airfoil Blade Damper (Parallel)

AD5

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

AD6

5" Deep Aluminum Airfoil Blade Damper (Opposed)

AD6

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

AF53

Round Single Blade Control Damper with Seals

AF53

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .013 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .013 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

D1770

4" Deep Single Thickness Blade Steel Control Damper

D1770

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

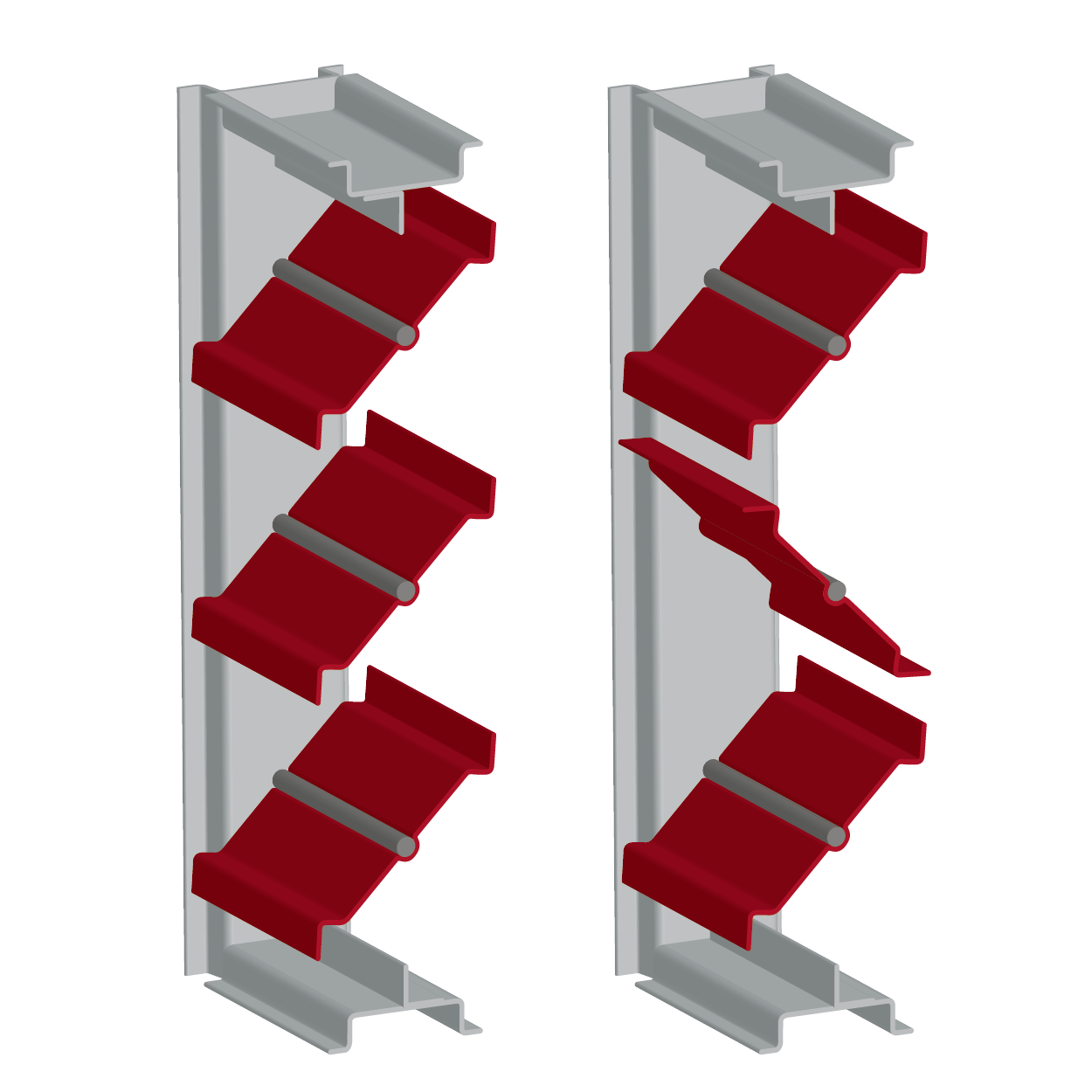

D182

4" Deep Single Thickness Blade Stainless Steel Control Damper

D182

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

D260DW

Dual Wall Insulated Round Single Blade Volume Control Damper

D260DW

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy, 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: True Round Single Thickness (UVU)
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)

D335

2" Deep Aluminum Backdraft Damper

D335

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .35 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .35 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 190 °F

D388

Galvanized Steel Round Backdraft Damper

D388

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

D389

Aluminum Round Backdraft Damper

D389

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

D390

Stainless Steel Round Backdraft Damper

D390

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

D395

4" Deep Single Thickness Blade Low Leakage Control Damper

D395

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

D503

2" Deep Light Duty Stainless Steel Backdraft Damper

D503

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .25 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .25 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

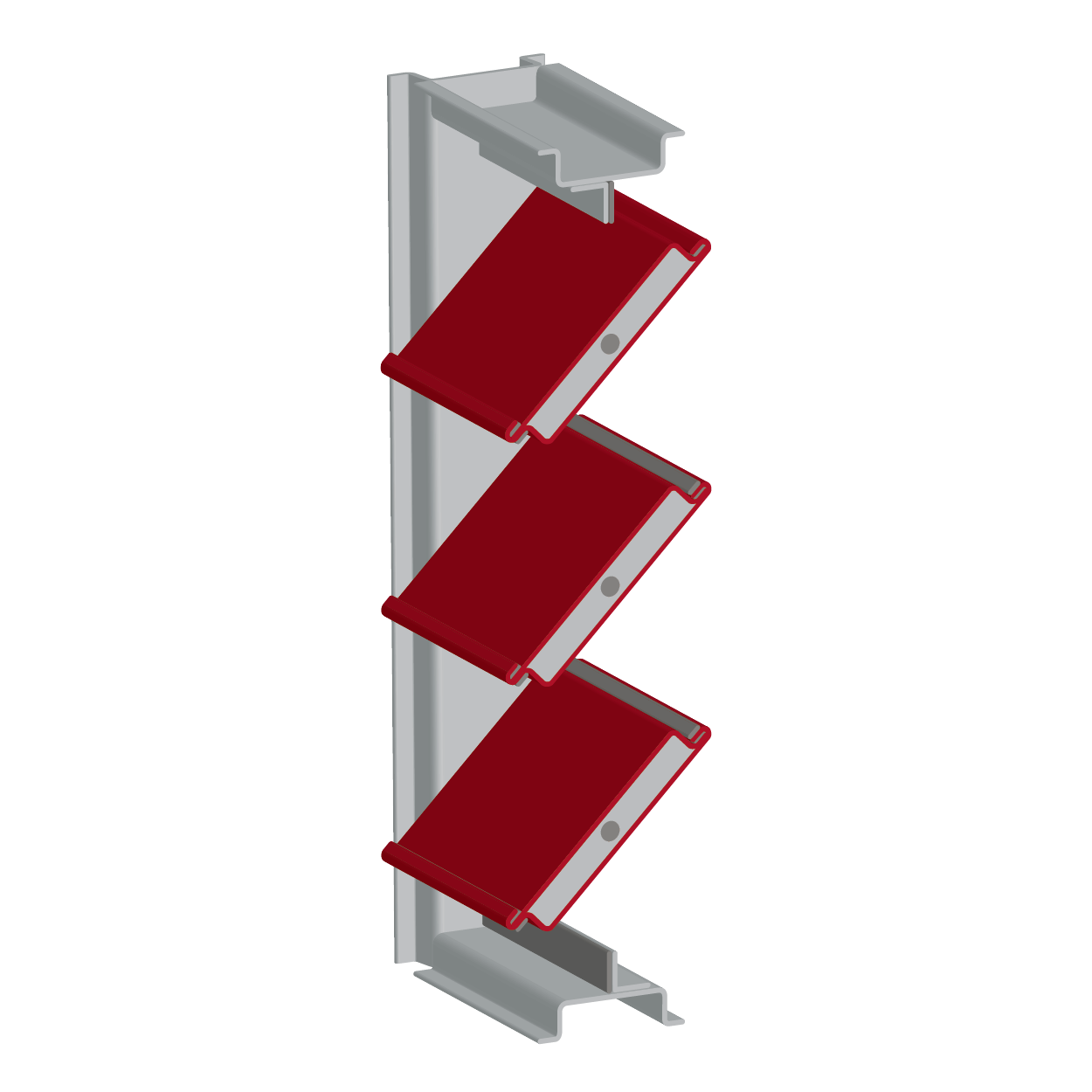

DID200

Parallel Double Thickness Insulated Blade Control Damper

DID200

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Insulated Airfoil
Blade Action: Parallel
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

GB1

5.5" Deep Single Thickness Blade Balancing Damper

GB1

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

GB2

5.5" Deep Single Thickness Blade Balancing Damper

GB2

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

GD1

5.5" Deep Single Thickness Blade Control Damper (Parallel)

GD1

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

GD2

5.5" Deep Single Thickness Blade Control Damper (Opposed)

GD2

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .03 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 200 °F

GD26

5.5" Deep Airfoil Blade Steel Control Damper (Parallel)

GD26

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

GD27

5.5" Deep Airfoil Blade Steel Control Damper (Opposed)

GD27

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 150 °F

GI30

4" Deep Light Industrial Airfoil Control Damper

GI30

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .035 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .035 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

GI33

8" Deep Light Industrial Single Thickness Control Damper

GI33

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 5 .in w.g. @ 1000 fpm
Pressure Drop: .017 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .017 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

GI34

8" Deep Light Duty Industrial Galvanized Damper

GI34

Maximum Velocity (FPM): 4000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .017 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .017 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F

GI41

10" Deep Industrial Single Thickness Blade Control Damper

GI41

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

GI42

10" Deep Industrial Single Thickness Blade Control Damper

GI42

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

GI43

10" Deep Formed Steel Industrial Control Damper

GI43

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 250 °F

GI50

10" Deep Industrial Formed Steel Airfoil Control Damper

GI50

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Rectangular
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 450 °F

GI51

10" Deep Industrial Formed Steel Airfoil Control Damper

GI51

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 20 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 450 °F

GI54

10" Deep Industrial Formed Steel Airfoil "Hi-Temp" Control Damper

GI54

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 15 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: Hot Rolled Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 800 °F

GI55

10" Deep Industrial Formed Steel Airfoil Control Damper (Clean Air)

GI55

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 400 °F

GI80

Industrial Single Blade Round Control Damper

GI80

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 12 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 10000 fpm (FPM)
Temperature Rating (°F): 250 °F

GI81

Industrial Heavy Duty Round Control Damper

GI81

Maximum Velocity (FPM): 10000 fpm
Max Static Pressure: 16 .in w.g. @ 1000 fpm
Pressure Drop: < .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Fabricated Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: < .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 10000 fpm (FPM)
Temperature Rating (°F): 250 °F

GI850

4" Deep Aluminum Teardrop Blade Backdraft Damper

GI850

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 8 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy, or Galvanized Steel
Blade Type: Tear-Drop
Blade Action: Parallel
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 190 °F

L111

4" Deep Single Blade Volume Control Balancing Damper

L111

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .037 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Rectangular
Pressure Drop: .037 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

L112

Round Single Blade Volume Control Damper

L112

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

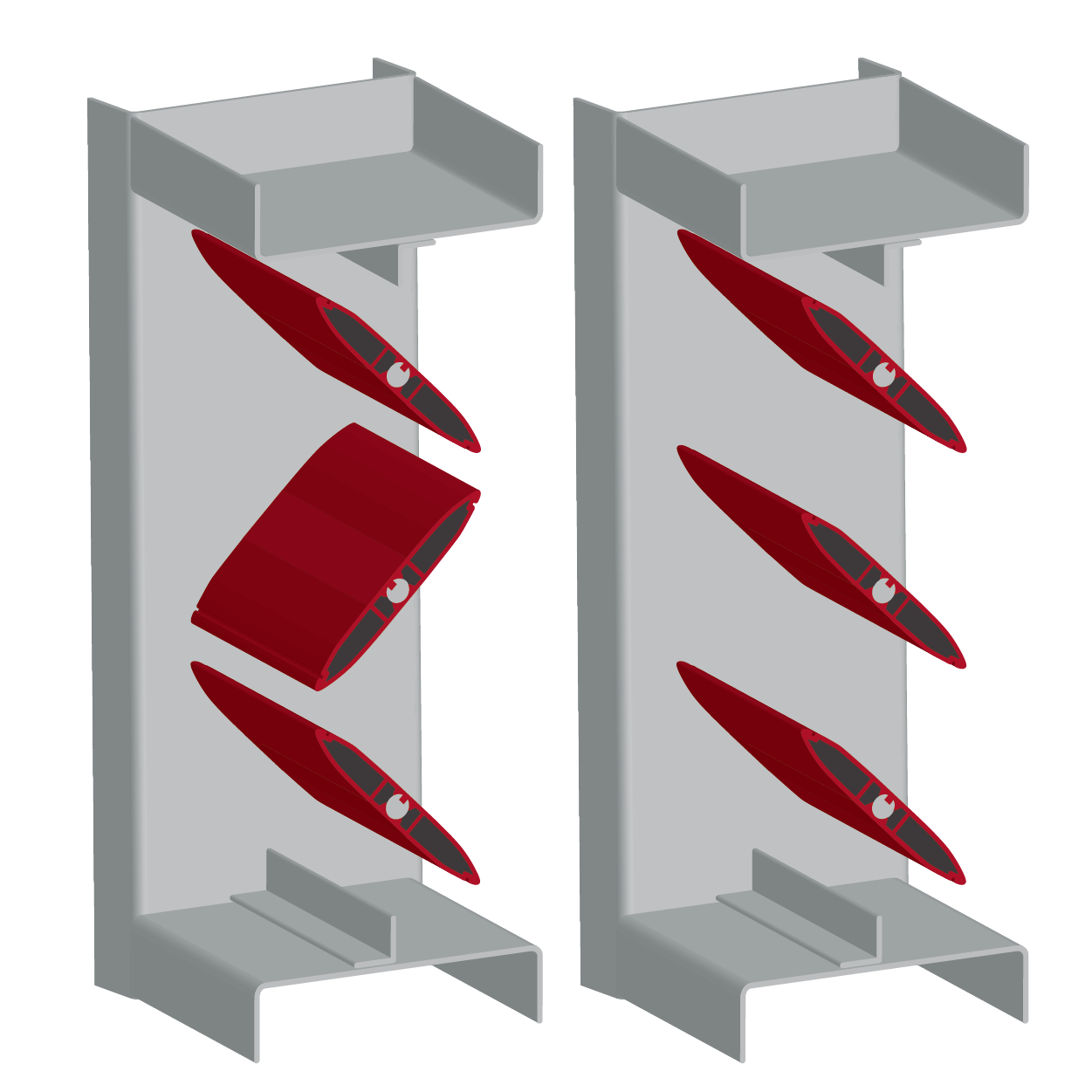

L545INS

10" Deep Industrial Insulated Airfoil Control Damper (Clean Air)

L545INS

Maximum Velocity (FPM): 8000 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .1 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Pressure Drop: .1 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 8000 fpm (FPM)
Temperature Rating (°F): 200 °F

L56

6.5" Deep Aluminum Airfoil Control Damper with Transition

L56

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 6 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Airfoil Blade
Blade Action: Parallel / Opposed
Frame Shape: Round
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)

L70

7.5" Deep Round Galvanized Steel Damper

L70

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

L70GL

7.5" Deep Round Galvanized Steel Damper with Honeywell Actuator

L70GL

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

L70R

7.625" Deep Round Single Blade Galvanized Steel Damper with Nine Position Locking Hand Quadrant

L70R

Maximum Velocity (FPM): 1500 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1500 fpm (FPM)
Temperature Rating (°F): 250 °F

L75

7.5" Deep Round Aluminum Damper

L75

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

L80

7.5" Deep Round Stainless Steel Damper

L80

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, or 316 Stainless Steel
Blade Type: Single Thickness Blade
Blade Action: Single
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): -35 °F to 180 °F

L85

6.5" Deep Aluminum Pin-Lock Control Damper with Transition

L85

Maximum Velocity (FPM): 2000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .012 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Pin-Lock
Blade Action: Parallel / Opposed
Frame Shape: Round
Pressure Drop: .012 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)

PR55

4" Deep Extruded Aluminum Backdraft Damper

PR55

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .14 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Pressure Drop: .14 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 190 °F

PR66

4' Deep Galvanized Steel Backdraft Damper - Intake or Discharge

PR66

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: 304 Stainless Steel, 316 Stainless Steel, or Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -30 °F to 180 °F

PRI4

4" Deep Heavy Duty Teardrop Blade Formed Steel Backdraft Damper

PRI4

Maximum Velocity (FPM): 2500 fpm
Max Static Pressure: 10 .in w.g. @ 1000 fpm
Pressure Drop: .67 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Tear-Drop
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .67 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2500 fpm (FPM)
Temperature Rating (°F): 180 °F

PRI9

10" Deep Aluminum Teardrop Blade Backdraft Damper

PRI9

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Tear-Drop
Blade Action: Parallel
Pressure Drop: .075 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -30 °F to 190 °F

PRL

2" Deep Light Duty Aluminum Pressure Relief Damper

PRL

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 1 .in w.g. @ 1000 fpm
Pressure Drop: .075 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .075 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F

T28B

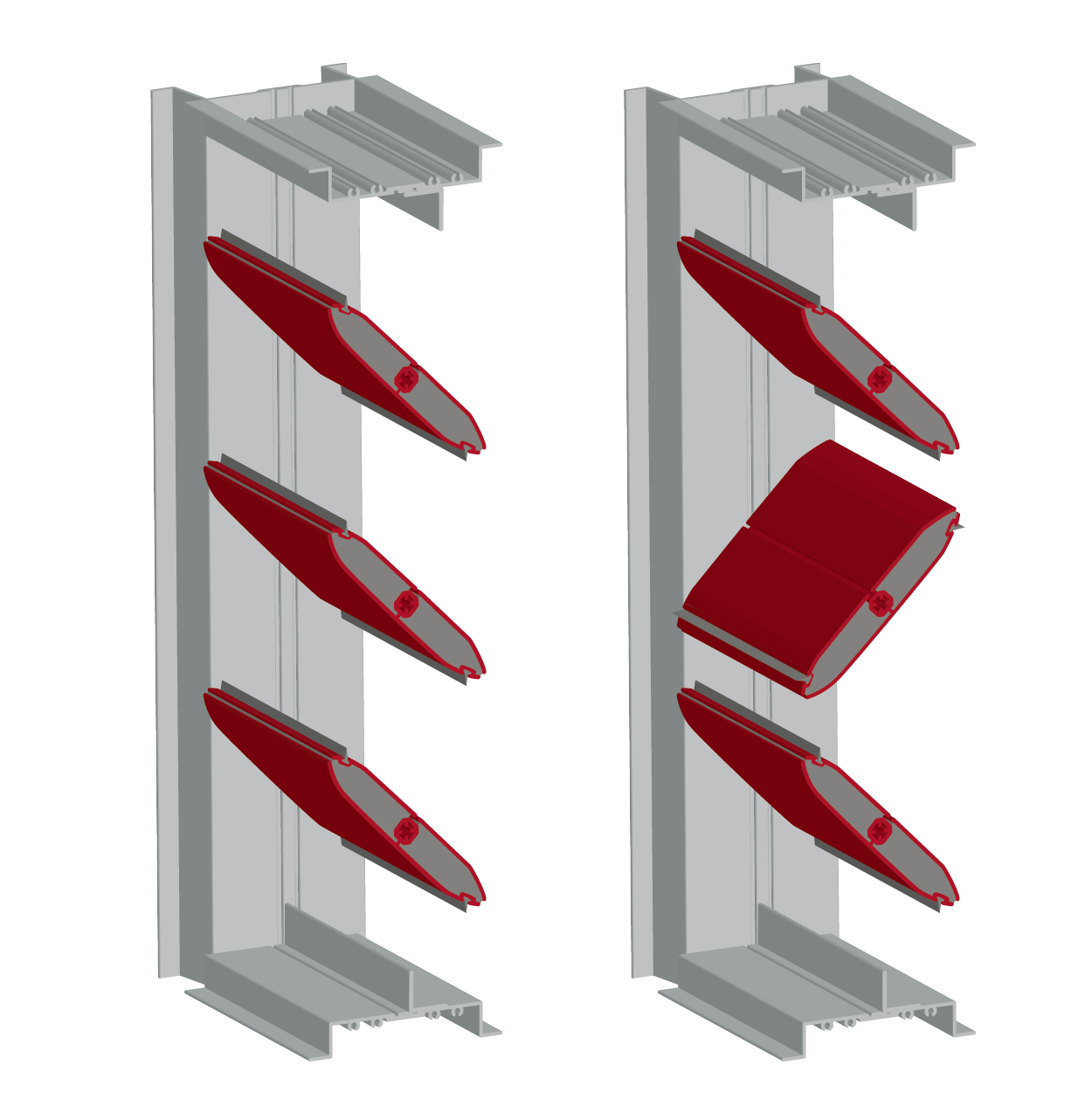

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

T28B

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

T28B4

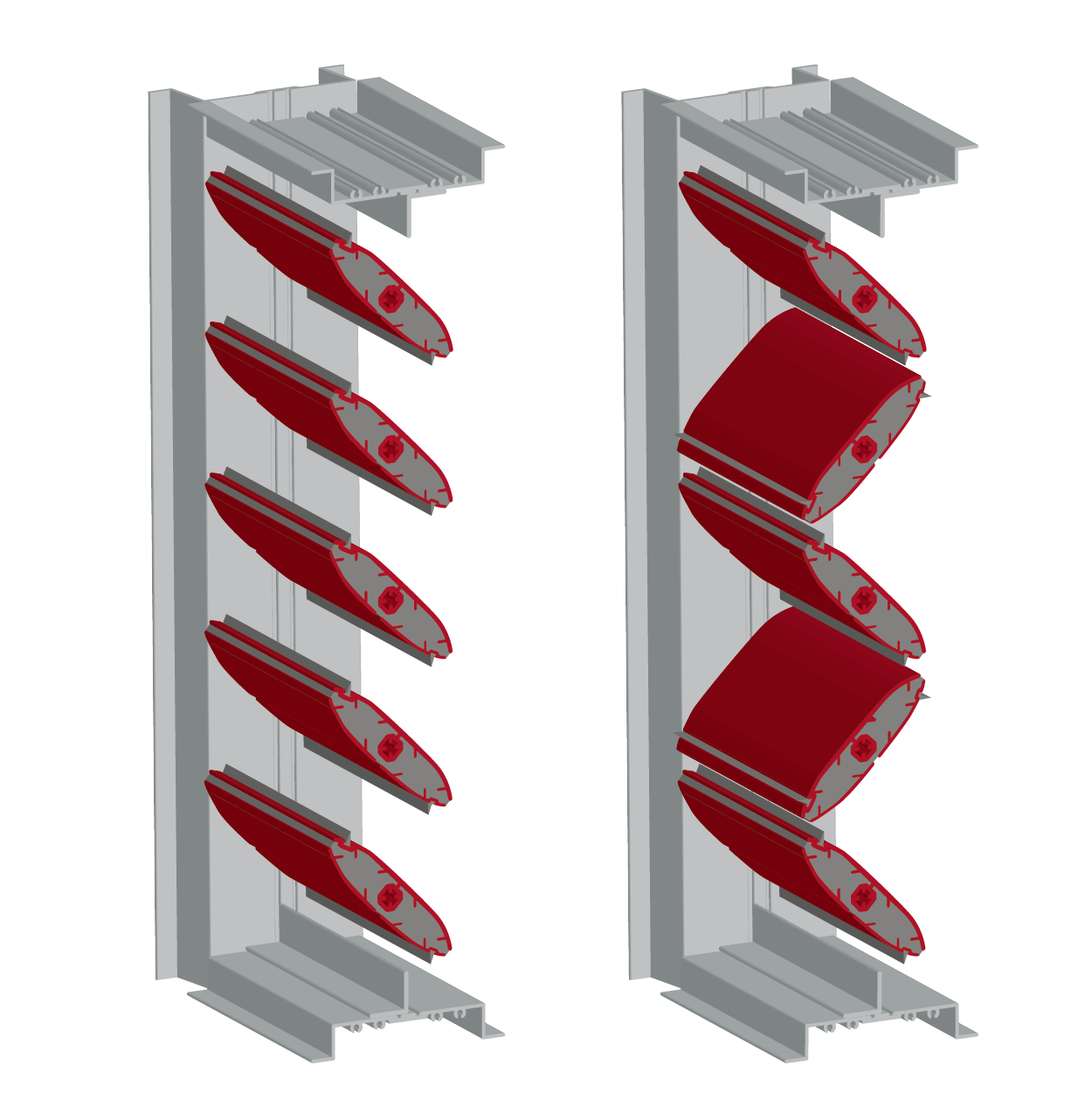

5" Deep Ultra Low Leak Insulated Airfoil Control Damper

T28B4

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

T28B4I

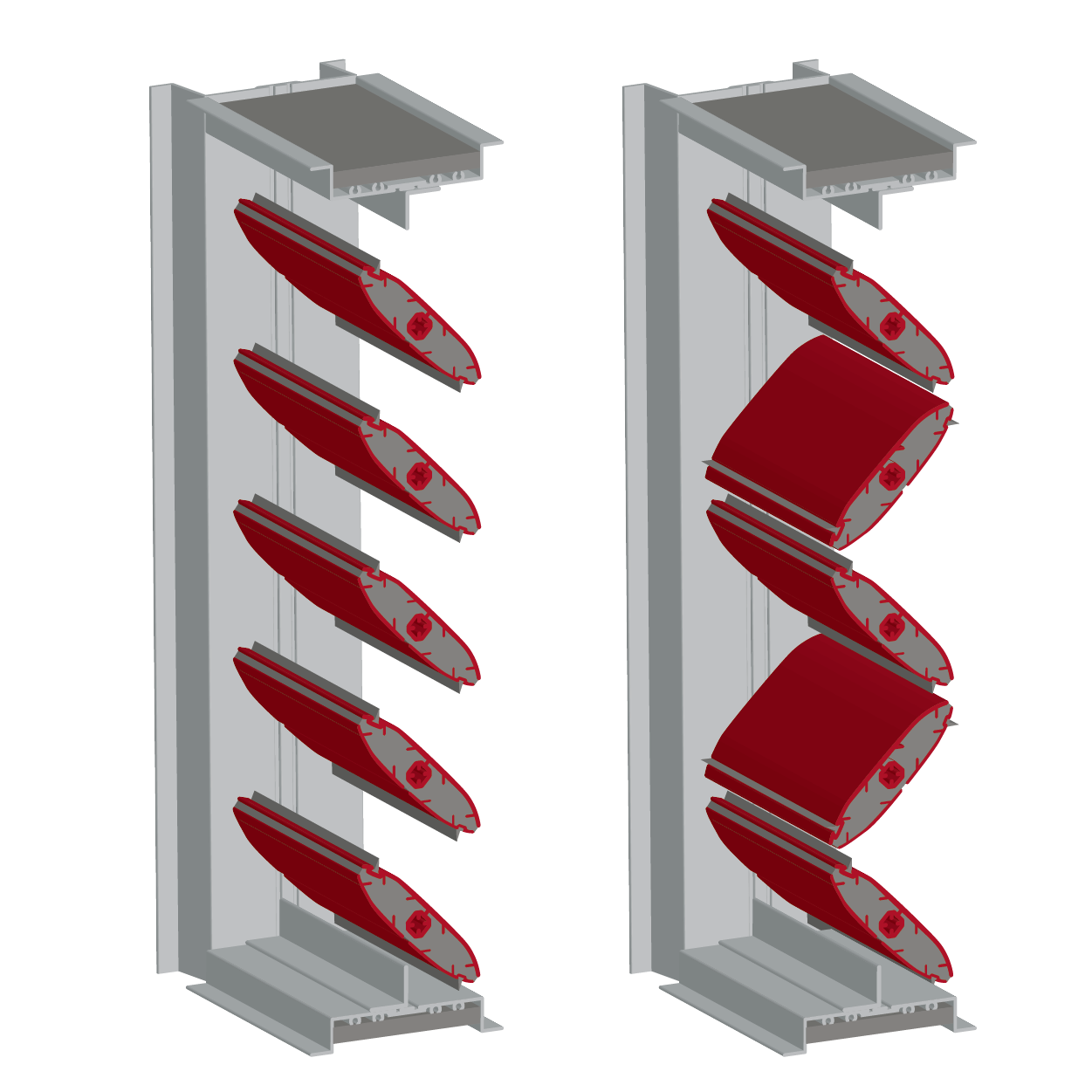

5" Deep Ultra Low Leak Insulated Control Damper

T28B4I

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

T28BI

5" Deep Ultra Low Leak 6" Airfoil Control Damper

T28BI

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Type: Insulated and Thermally Broken Airfoil
Blade Action: Parallel / Opposed
Insulation: Two Part High Density Polyurethane Foam
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -40 °F to 200 °F

T29B

5" Deep Ultra Low Leak Thermal Break Airfoil Control Damper

T29B

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .04 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Action: Parallel / Opposed
Pressure Drop: .04 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -70 °F to 200 °F

T29B4

5" Deep Ultra Low Leak Thermal Break 4" Airfoil Blade Control Damper

T29B4

Maximum Velocity (FPM): 3000 fpm
Max Static Pressure: 4 .in w.g. @ 1000 fpm
Pressure Drop: .05 in. w.g. @ 1000 fpm

Material Options: Extruded Aluminum 6063 Alloy
Blade Action: Parallel / Opposed
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): -70 °F to 200 °F

356

10" Deep Triple Deck Multi-Zone Damper

356

Maximum Velocity (FPM): 1000 fpm
Max Static Pressure: 2 .in w.g. @ 1000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Maximum Velocity (FPM): 1000 fpm (FPM)
Temperature Rating (°F): -40 °F to 180 °F
