Smoke Dampers

These dampers are built for smoke control and containment. Models available with Class 1 or Class 2 smoke leakage.

Products 17

Products

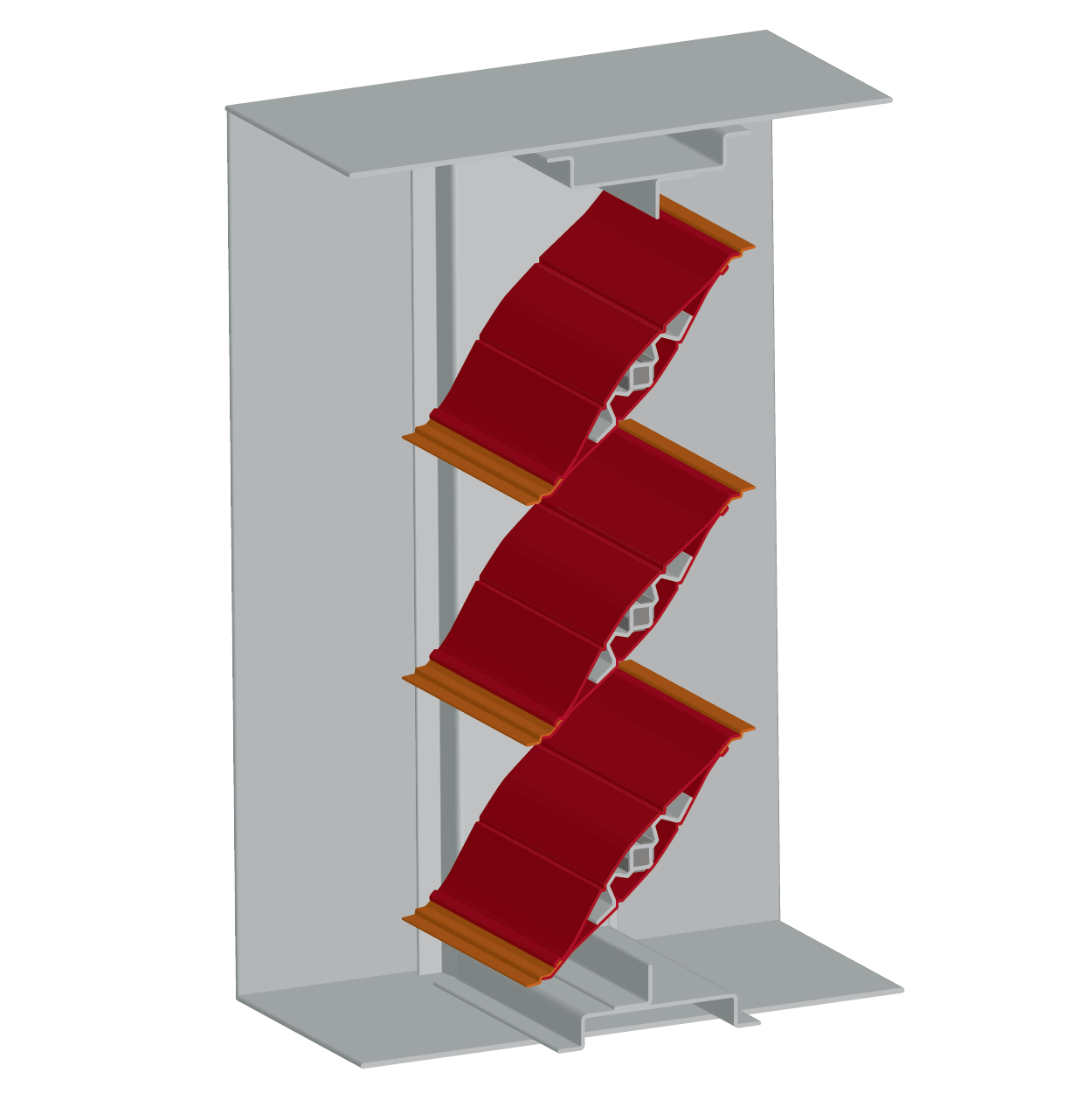

KA1

Class I Airfoil Blade Smoke Damper

KA1H250, KA1H350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KA1 EP Series

Class I Airfoil Blade Smoke Damper (EP Series)

KA1H25034, KA1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KA1 HE Series

Class I Airfoil Blade Smoke Damper (HE Series)

KA1H25046, KA1H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KA1 HP Series

Class I Airfoil Blade Smoke Damper (HP Series)

KA1H25044, KA1H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

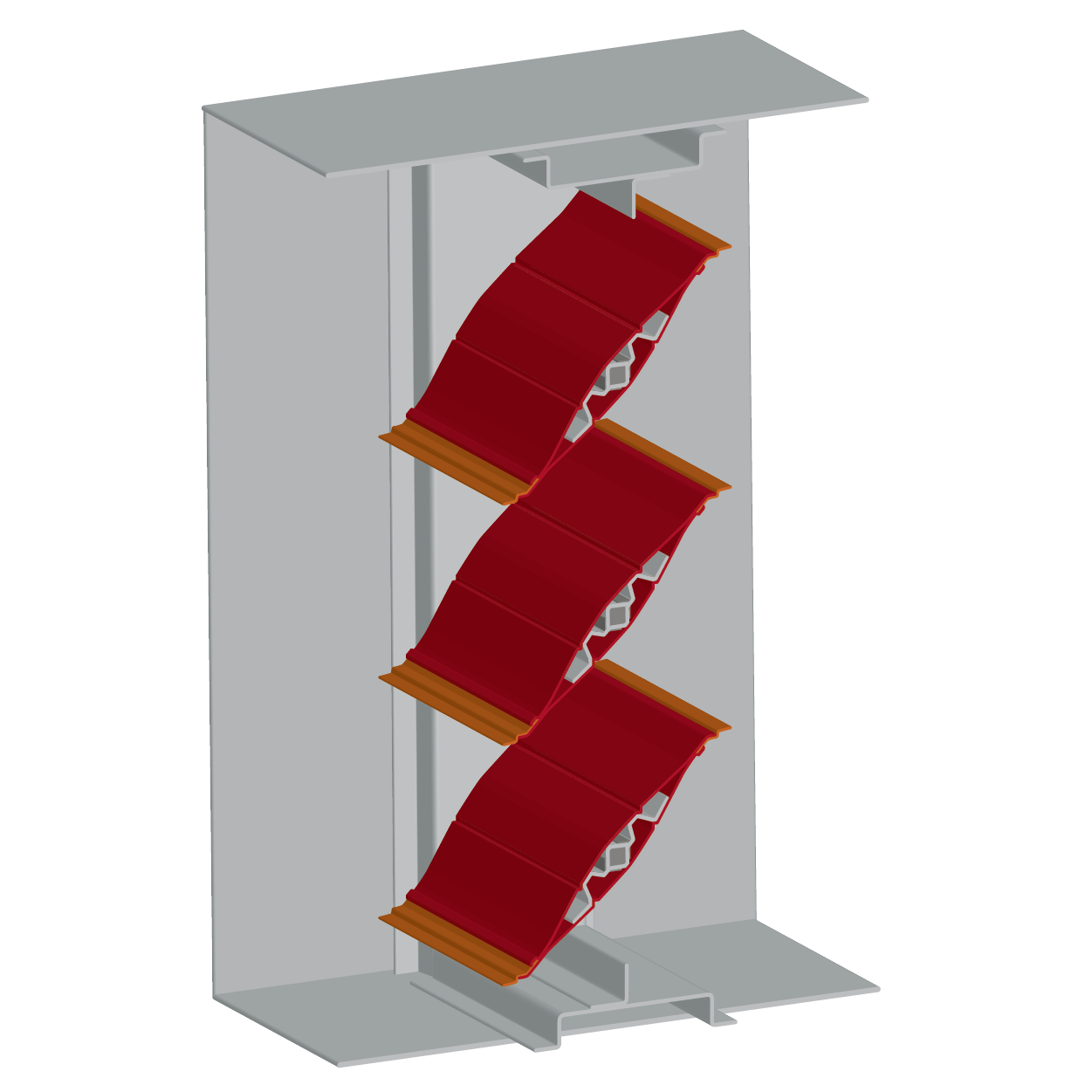

KA2 EP Series

Class II Airfoil Blade Smoke Damper (EP Series)

KA2H25034, KA2H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KA2 HE Series

Class II Airfoil Blade Smoke Damper (HE Series)

KA2H25046, KA2H35046

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KA2 HP Series

Class II Airfoil Blade Smoke Damper (HP Series)

KA2H25044, KA2H35044

Maximum Velocity (FPM): 4000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 4000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

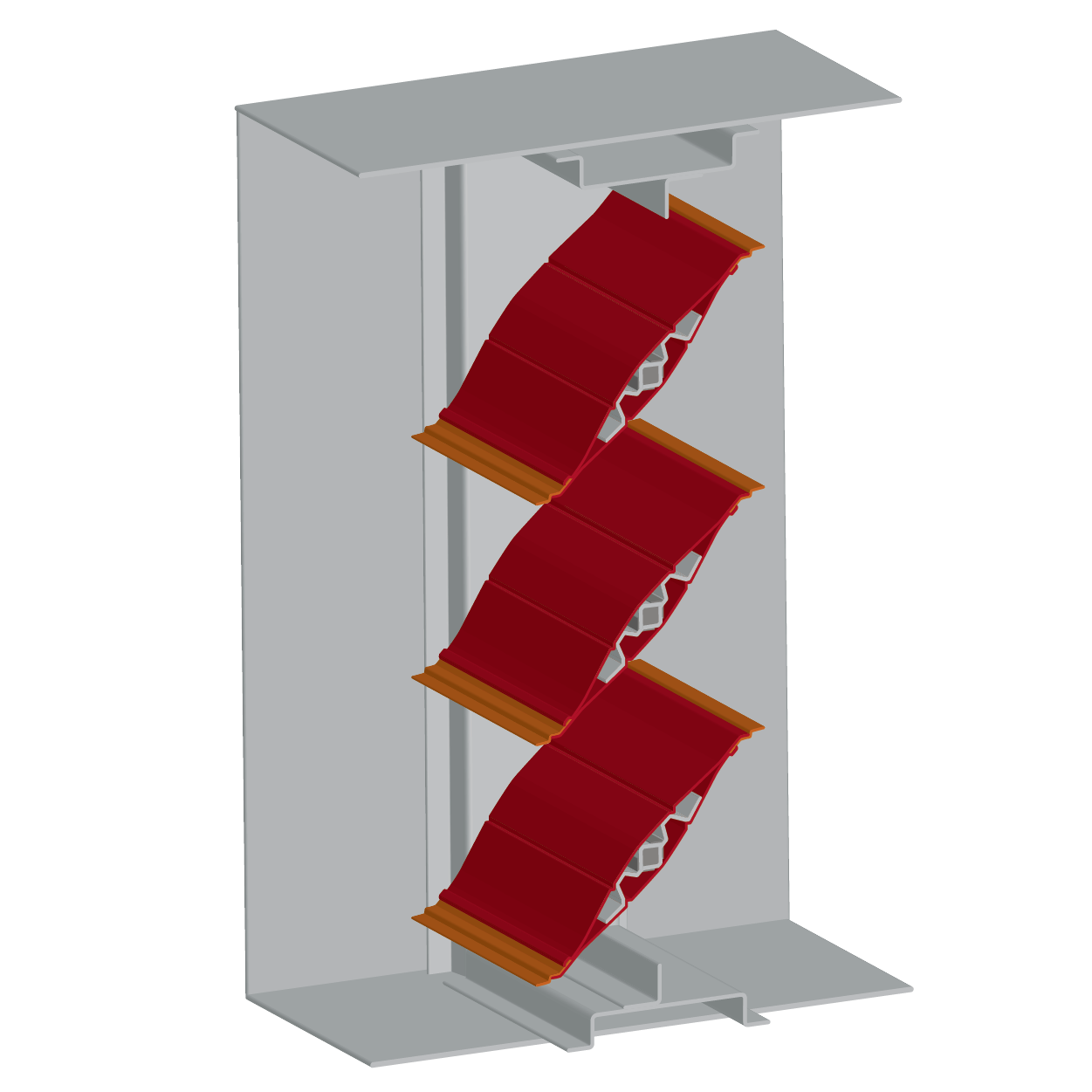

KA2M

Class II Airfoil Blade Modulating Smoke Damper

KA2HM250

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Airfoil Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

KH1

Class I Single Thickness Blade Smoke Damper

KH1250, KH1350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KH1 EP Series

Class I Single Thickness Blade Smoke Damper (EP Series)

KA1H25034, KA1H35034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

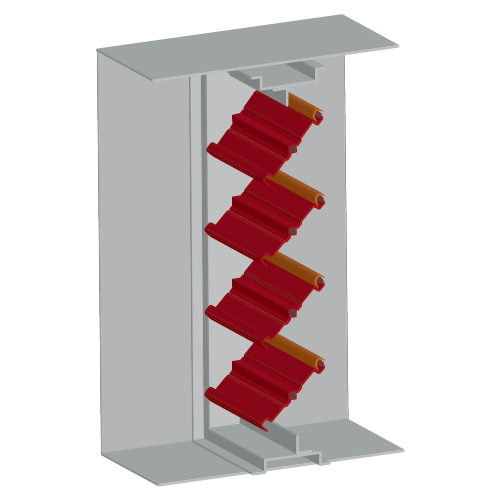

KH1(SS)

Class I Single Thickness Blade Stainless Steel Smoke Damper

KH1250SS

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

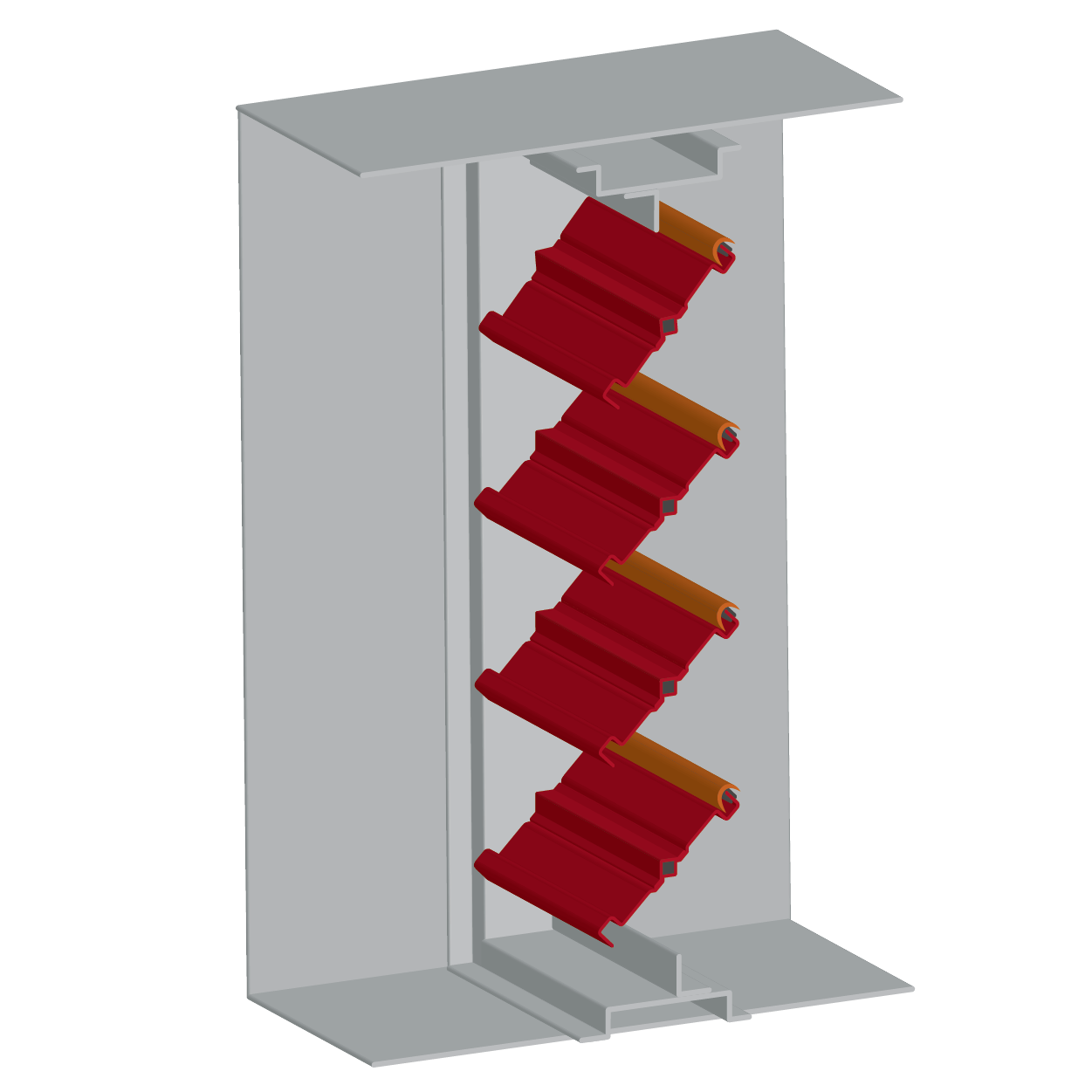

KH2

Class II Single Thickness Blade Smoke Damper

KH2250, KH2350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

KH2 EP Series

Class II Single Thickness Blade Smoke Damper (3000 FPM, 4 in. w.g. Max)

KH225034

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .06 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

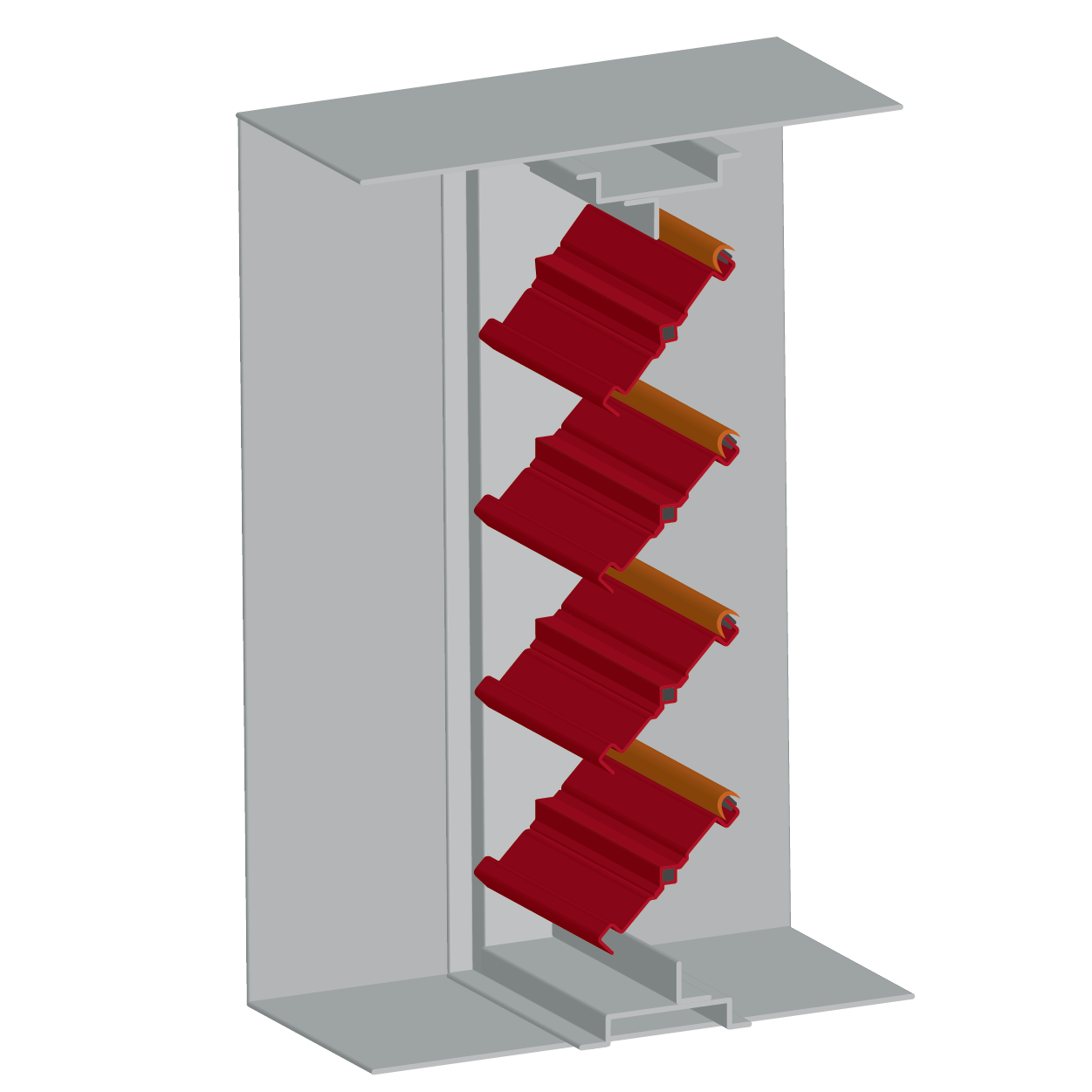

KH2(SS)

Class II Single Thickness Blade Stainless Steel Smoke Damper

KH2250SS

Maximum Velocity (FPM): 3000 fpm

Material Options: 304 Stainless Steel
Blade Type: Single Thickness Blade
Frame Shape: Rectangular
Pressure Drop: .05 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F

More Info

KR1

Class I Single Thickness Blade Smoke Damper w/ Integrated Sleeve

KR1H250, KR1H350, KR1V250, KR1V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

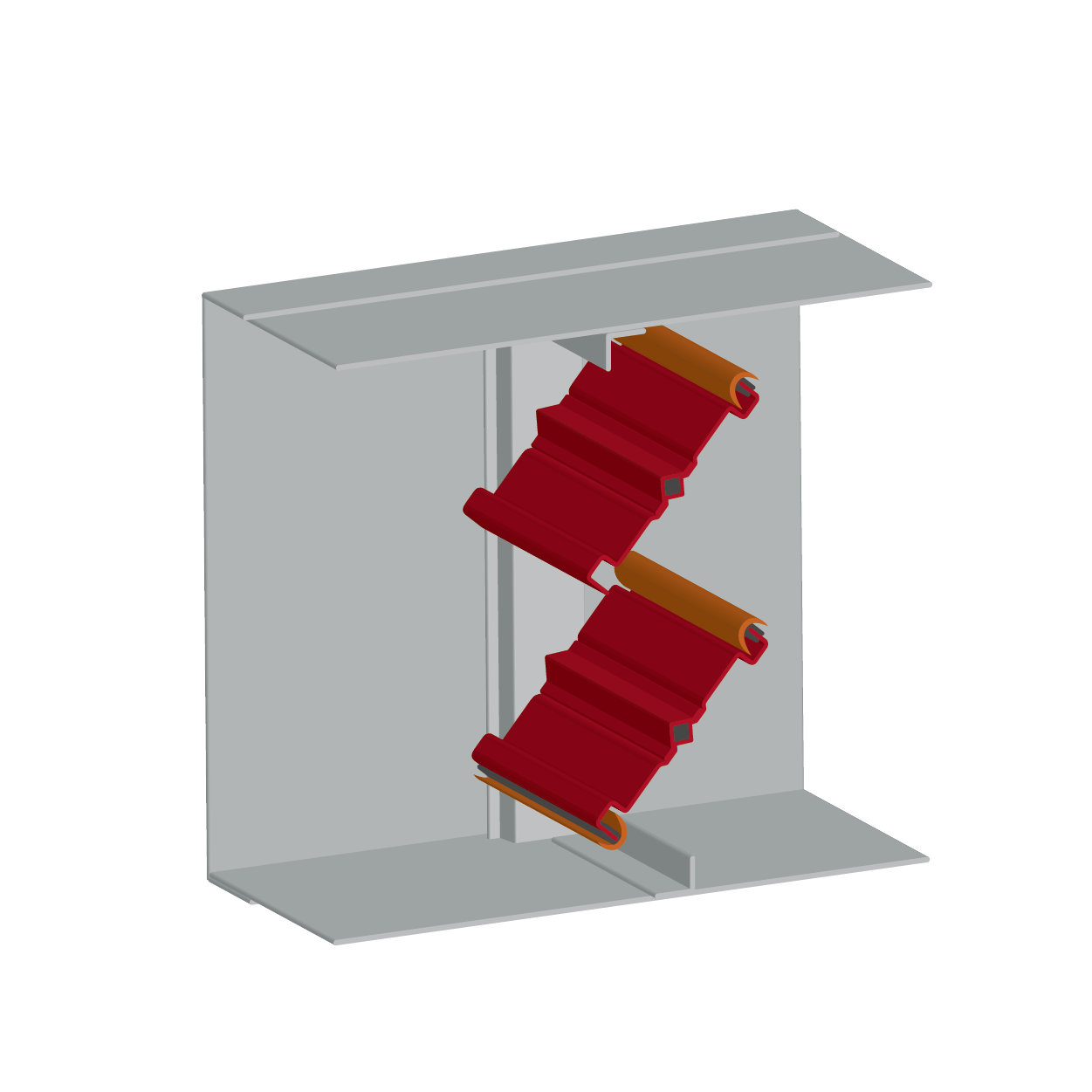

KR2

Class II Single Thickness Blade Smoke Damper w/ Integrated Sleeve

KR2H250, KR2H350, KR2V250, KR2V350

Maximum Velocity (FPM): 2000 fpm

Material Options: Galvanized Steel
Blade Type: Single Thickness Blade
Blade Action: Parallel
Frame Shape: Rectangular
Pressure Drop: .03 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 2000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info

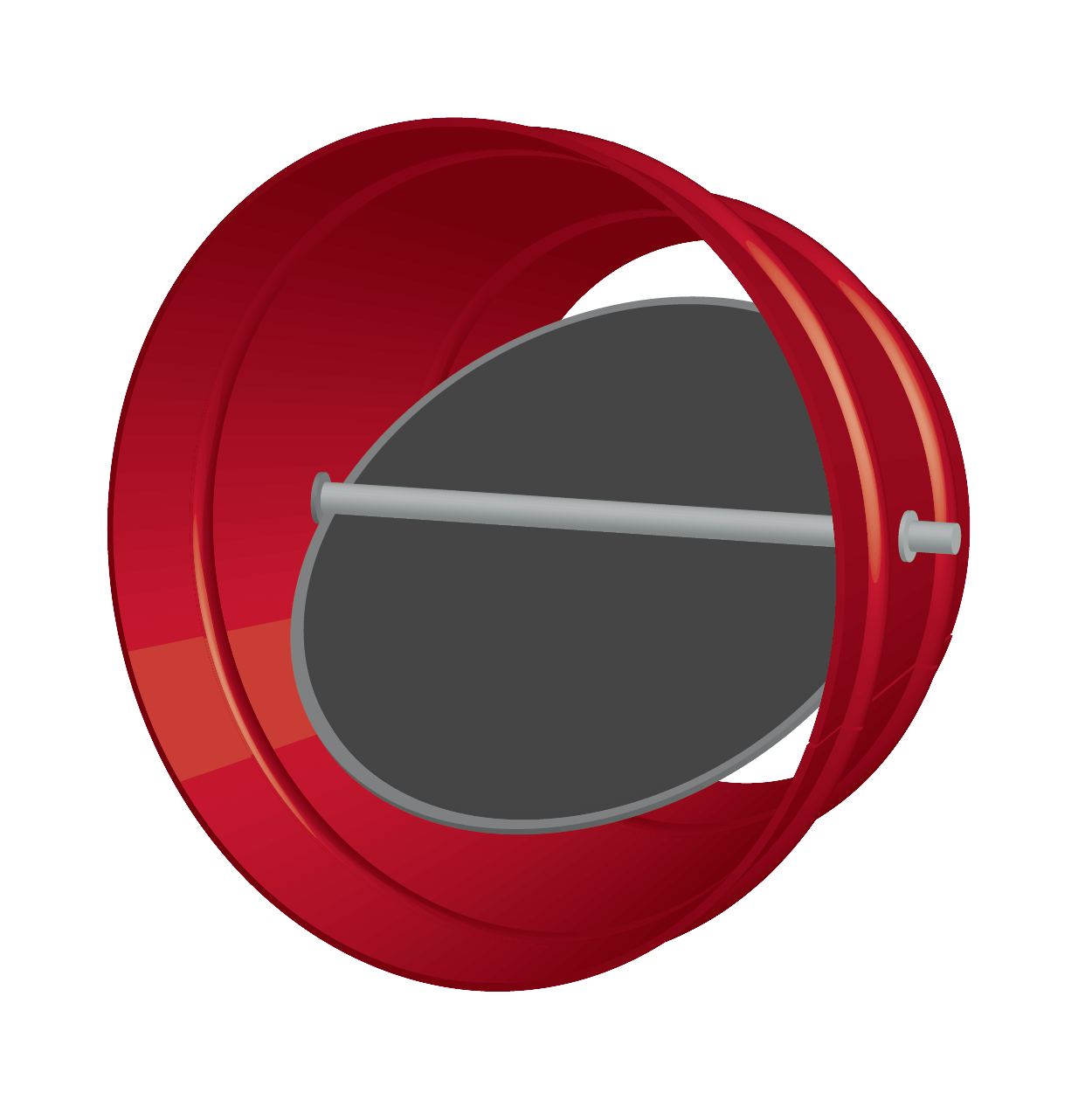

RK

Class I True Round Smoke Damper

RK250, RK350

Maximum Velocity (FPM): 3000 fpm

Material Options: Galvanized Steel
Blade Type: True Round Straight
Frame Shape: Round
Pressure Drop: .02 in. w.g. @ 1000 fpm
Maximum Velocity (FPM): 3000 fpm (FPM)
Temperature Rating (°F): 250 °F to 350 °F

More Info
